SMV2021-000

Silicon Hyperabrupt Varactor Diode Chips

SMV2021-000 General Description

Alpha Industries’ product line of silicon hyperabrupt junction varactor diode chips are processed using established ion-implantation technology resulting in low RS wide tuning ratio devices with high Q values. These planar chips have a small outline size (12 x 12 mils nominal) and are fully passivat.

SMV2021-000 Datasheet (287.31 KB)

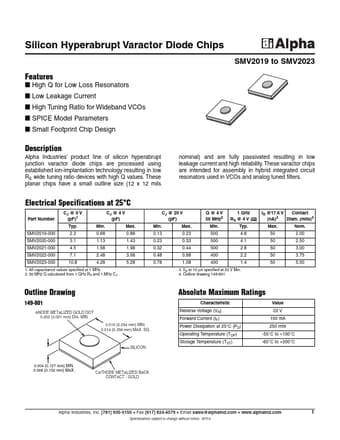

Preview of SMV2021-000 PDF

Datasheet Details

Part number:

SMV2021-000

Manufacturer:

Alpha Industries

File Size:

287.31 KB

Description:

Silicon hyperabrupt varactor diode chips.
