SMV2022-000 - Silicon Hyperabrupt Varactor Diode Chips

Name: SMV2022-000
SKU: SMV2022-000-337365

Alpha Industries

📥 Download Datasheet

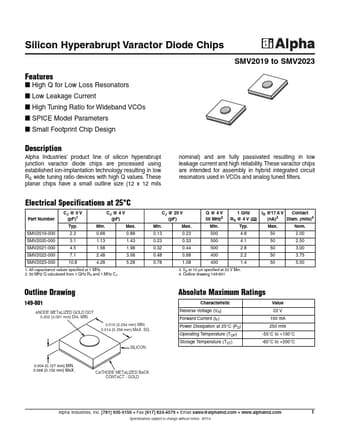

SMV2022-000 Datasheet Preview — Preview of SMV2022-000 PDF

Datasheet Details

Part number	SMV2022-000
Manufacturer	Alpha Industries
File Size	287.31 KB
Description	Silicon Hyperabrupt Varactor Diode Chips
Datasheet	SMV2022-000_AlphaIndustries.pdf

SMV2022-000 Product details

Description

Alpha Industries’ product line of silicon hyperabrupt junction varactor diode chips are processed using established ion-implantation technology resulting in low RS wide tuning ratio devices with high Q values.

Features

I High Q for Low Loss Resonators I Low Leakage Current I High Tuning Ratio for Wideband VCOs I SPICE Model Parameters I Small Footprint Chip Design.
