SMV2020L-LF, SMV2020L-LF_Z OSCILLATOR

SMV2020L-LF Description

www.DataSheet4U.com 9939 Via Pasar * San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 SMV2020L-LF VOLTAGE CONTROLLED OSCILLATOR Rev .

SMV2020L-LF Features

* Frequency Range: 1860 - 2180 MHz
* Tuning Voltage: 0.5-4.5 Vdc

SMV2020L-LF Applications

* WLAN
* PCS
* Portable Radios PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ. ) Harmonic Suppression (2nd, typ. ) Tuning Voltage Tuning Sensitivity (avg. ) Power Output Load Impedance Input Capacitance (max. ) Pushing Pulling (14

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SMV2020L-LF, SMV2020L-LF_Z. Please refer to the document for exact specifications by model.

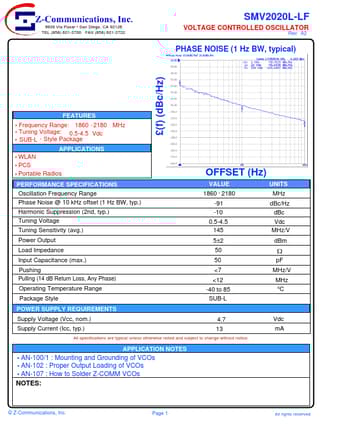

datasheet Preview Page 2

Datasheet Details

Part number
SMV2020L-LF, SMV2020L-LF_Z
Manufacturer
Z-Communications
File Size
69.63 KB
Datasheet
SMV2020L-LF_Z-Communications.pdf
Description
OSCILLATOR
Note
This datasheet PDF includes multiple part numbers: SMV2020L-LF, SMV2020L-LF_Z.
Please refer to the document for exact specifications by model.
