SMV2026

Silicon Hyperabrupt Tuning Varactor Diode

SMV2026 Features

* Low series resistance and leakage current for low phase-noise VCOs

* High-capacitance ratio: CT (2 V)/CT (10 V) = 2.0 minimum

* Broad 15-V tuning range

* Competitive cross to Toshiba 1SV179 varactor diode

* SC-79 and ultra-small SOD-882 packages (MSL1, 260 C per JEDEC J-STD-02

SMV2026 General Description

The SMV2026 series are silicon surface-mount, hyperabrupt tuning varactor diodes, excellent for use as high-Q tuning elements in an RF voltage controlled oscillator (VCO), voltagecontrolled phase shifter, or tunable bandpass filter. The minimum capacitance ratio from 2 V to 10 V is 2.0, which makes .

SMV2026 Datasheet (275.08 KB)

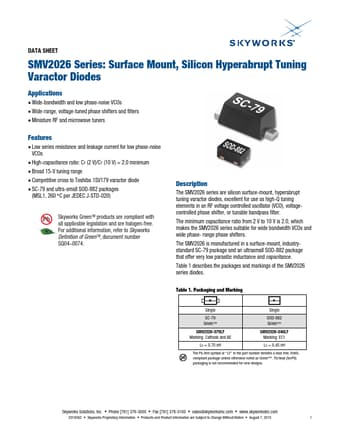

Preview of SMV2026 PDF

Datasheet Details

Part number:

SMV2026

Manufacturer:

Skyworks Solutions

File Size:

275.08 KB

Description:

Silicon hyperabrupt tuning varactor diode.
DATA SHEET SMV2026 Series: Surface Mount, Silicon Hyperabrupt Tuning Varactor Diodes Applications Wide-bandwidth and low phase-noise VCOs .
