GP20A - SINTERED GLASS PASSIVATED JUNCTION RECTIFIER

ZOWIE

Datasheet Details

Part number	GP20A
Manufacturer	ZOWIE
File Size	53.36 KB
Description	SINTERED GLASS PASSIVATED JUNCTION RECTIFIER

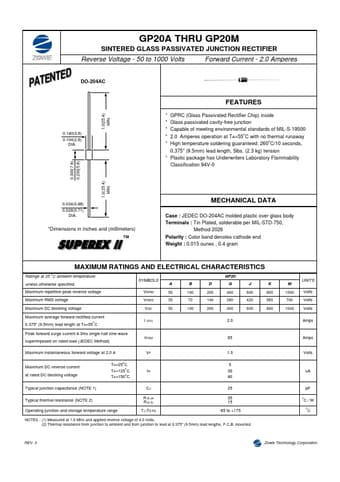

Datasheet	GP20A-Zowie.pdf

GPRC (Glass Passivated Rectifier Chip) inside.
Glass passivated cavity-free junction.
Capable of meeting environmental standards of MIL-S-19500.
2.0 Amperes operation at TA=55oC with no thermal runaway.
High temperature soldering guaranteed: 260oC/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.
Plastic package has Underwriters Laboratory Flammability Classification 94V-0 0.300(7.6) 0.230(5.8) 1.0(25.4) MIN. 0.034(0.86) 0.028(0.71) DIA.
Dimens.
