ZL40510 - (ZL40510 / ZL40514) Dual Output DVD and CD 4 Channel Laser Diode Drivers

Product Overview

Zarlink Semiconductor

Datasheet Details

Part number	ZL40510
Manufacturer	Zarlink Semiconductor
File Size	1.26 MB
Description	(ZL40510 / ZL40514) Dual Output DVD and CD 4 Channel Laser Diode Drivers
Datasheet	ZL40510 Datasheet

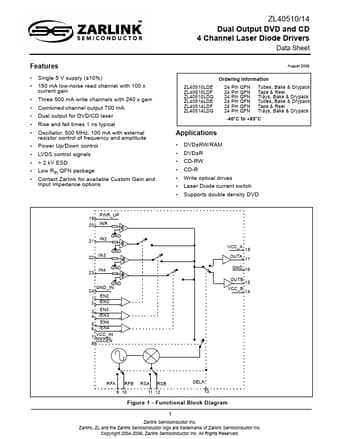

Additional preview pages of the ZL40510 datasheet.

Product details

Description

The ZL40510/14 are high performance laser drivers capable of driving two separate cathode grounded laser diodes (e.g., 650 nm and 780 nm laser diodes).

Features

Single 5 V supply (±10%) 150 mA low-noise read channel with 100 x current gain Three 500 mA write channels with 240 x gain Combined channel output 700 mA Dual output for DVD/CD laser Rise and fall times 1 ns typical Oscillator, 500 MHz, 100 mA with external resistor control of frequency and amplitude Power Up/Down control LVDS control signals > 2 kV ESD Low Rth QFN package Cont.
