ZL40511, (ZL40511 / ZL40515) Dual Output DVD and CD 4 Channel Laser Diode Drivers

www.DataSheet4U.com ZL40511/15 Dual Output DVD and CD 4 Channel Laser Diode Drivers Data Sheet .
The ZL40511/15 are high performance laser drivers capable of driving two separate cathode grounded laser diodes (e.

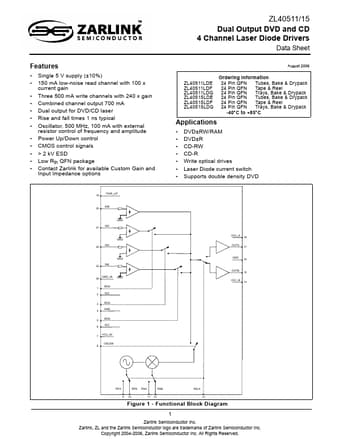

datasheet Preview Page 1 from Datasheet4u.com

ZL40511_ZarlinkSemiconductor.pdf

ZL40511 Datasheet Preview — Preview of ZL40511 PDF

Datasheet Details

Part number:

ZL40511

Manufacturer:

Zarlink Semiconductor

File Size:

1.25 MB

Description:

(ZL40511 / ZL40515) Dual Output DVD and CD 4 Channel Laser Diode Drivers

Features

* Single 5 V supply (±10%) 150 mA low-noise read channel with 100 x current gain Three 500 mA write channels with 240 x gain Combined channel output 700 mA Dual output for DVD/CD las

Applications

* DVD±RW/RAM DVD±R CD-RW CD-R Write optical drives Laser Diode current switch Supports double density DVD 19 PWR_UP 20 INR GND 21 IN2 VCC_A GND 22 IN3 OUTA 18 17 GND 22 IN4 GND 16 OUTB 24 1 2 3 4 5 6 7 8 GND_IN /EN2 N/C /E
