ZL40539 - Dual Output CD and DVD 4 Channel Laser Diode Driver

Product Overview

Zarlink Semiconductor

Datasheet Details

Part number	ZL40539
Manufacturer	Zarlink Semiconductor
File Size	580.41 KB
Description	Dual Output CD and DVD 4 Channel Laser Diode Driver
Datasheet	ZL40539 Datasheet

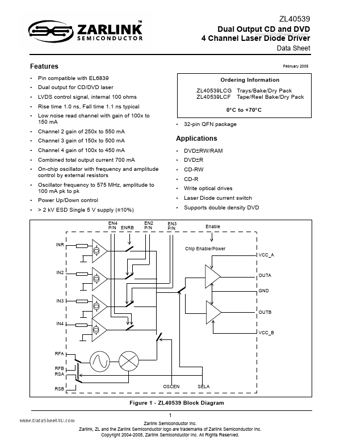

Additional preview pages of the ZL40539 datasheet.

Product details

Description

The ZL40539 is a high performance laser diode driver capable of driving two separate cathode grounded laser diodes (e.g., 650 nm and 780 nm laser diodes).

Features

Pin compatible with EL6839 Dual output for CD/DVD laser LVDS control signal, internal 100 ohms Rise time 1.0 ns, Fall time 1.1 ns typical Low noise read channel with gain of 100x to 150 mA Channel 2 gain of 250x to 550 mA Channel 3 gain of 150x to 500 mA Channel 4 gain of 100x to 450 mA Combined total output current 700 mA On-chip oscillator with frequency and amplitu.
