A3R12E40DBF, A3R12E30DBF - 512Mb DDRII SDRAM

Zentel

📥 Download Datasheet

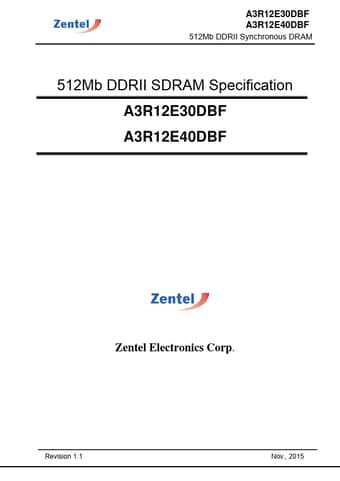

A3R12E40DBF Datasheet Preview — This datasheet PDF includes multiple part numbers: A3R12E40DBF, A3R12E30DBF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	A3R12E40DBF, A3R12E30DBF
Manufacturer	Zentel
File Size	1.58 MB
Description	512Mb DDRII SDRAM
Datasheet	A3R12E30DBF-Zentel.pdf
Note	This datasheet PDF includes multiple part numbers: A3R12E40DBF, A3R12E30DBF. Please refer to the document for exact specifications by model.

A3R12E40DBF Product details

Features

Density: 512 bits.
Organization.
16M words × 8 bits × 4 banks (A3R12E30DBF).
8M words × 16 bits × 4 banks (A3R12E40DBF).
Package.
60-ball FBGA(μBGA) (A3R12E30DBF).
84-ball FBGA(μBGA) (A3R12E40DBF).
Lead-free (RoHS compliant).
Power supply: VDD, VDDQ = 1.8V ± 0.1V.
Data rate: 1066Mbps/800Mbps (max. ).
1KB page size (A3R12E30DBF).
Row address: A0 to A13.
Column address: A0 to A9.
