ADC12D040

12-Bit A/D Converter

Texas Instruments

ADC12D040 Features

* 1

* 2 Binary or 2’s Complement Output Format

* Single Supply Operation

* Internal Sample-and-Hold

* Outputs 2.4V to 5V Compatible

* Power Down Mode

* Pin-Compatible with ADC12DL066

* Internal/External Reference APPLICATIONS

* Ultrasound

ADC12D040 General Description

The ADC12D040 is a dual, low power monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 40 Megasamples per second (Msps), minimum. This converter uses a differential, pipeline architecture with digital error correction and an onchip samp.

ADC12D040 Datasheet (927.46 KB)

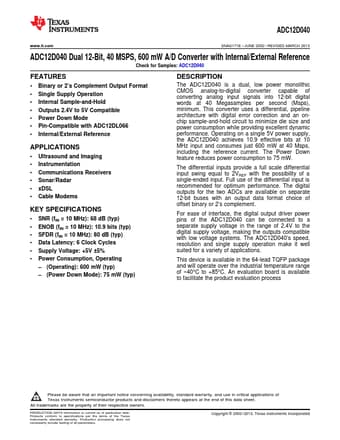

ADC12D040 Datasheet Preview — Preview of ADC12D040 PDF

Datasheet Details

Part number:

ADC12D040

Manufacturer:

Texas Instruments ↗

File Size:

927.46 KB

Description:

12-bit a/d converter.
ADC12D040 www.ti.com SNAS171E

* JUNE 2002

* REVISED MARCH 2013 ADC12D040 Dual 12-Bit, 40 MSPS, 600 mW A/D Converter with Internal/E.
