ADC12D1600QML

RF-Sampling ADC

Texas Instruments

ADC12D1600QML Features

* 1

* 2 Total Ionizing Dose (TID) to 300 krad(Si)

* Single Event Latch-up (SEL) > 120 MeV- cm2/mg

* Wide Temperature Range -55°C to +125°C

* Low Power Consumption

* R/W SPI for Extended Control Mode or Simple Pin Control Mode

* Interleaved Timing Automati

ADC12D1600QML General Description

The ADC12D1600QML is a low power, high performance CMOS analog-to-digital converter that digitizes signals at a 12-bit resolution at sampling rates up to 3.2 GSPS in an interleaved mode. It can also be used as a dual channel ADC for sampling rates up to 1.6 GSPS. For sampling rates below 800 MHz, th.

ADC12D1600QML Datasheet (0.98 MB)

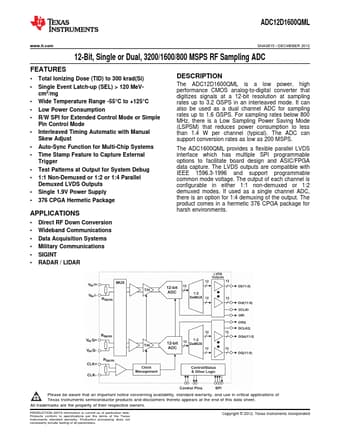

ADC12D1600QML Datasheet Preview — Preview of ADC12D1600QML PDF

Datasheet Details

Part number:

ADC12D1600QML

Manufacturer:

Texas Instruments ↗

File Size:

0.98 MB

Description:

Rf-sampling adc.
