ADC12D1800RF

RF-Sampling ADC

ADC12D1800RF Features

* 1

* Excellent Noise and Linearity Up to and Above fIN = 2.7 GHz

* Configurable to Either 3.6 GSPS Interleaved or 1800 MSPS Dual ADC

* New DESCLKIQ Mode for High Bandwidth, High Sampling Rate Apps

* Pin-Compatible with ADC1xD1x00, ADC12Dx00RF

* AutoSync Feature

ADC12D1800RF General Description

The 12-bit 1.8 GSPS ADC12D1800RF is an RF-sampling GSPS ADC that can directly sample input frequencies up to and above 2.7 GHz. The ADC12D1800RF augments the very large Nyquist zone of TI’s GSPS ADCs with excellent noise and linearity performance at RF frequencies, extending its usable range beyond .

ADC12D1800RF Datasheet (3.66 MB)

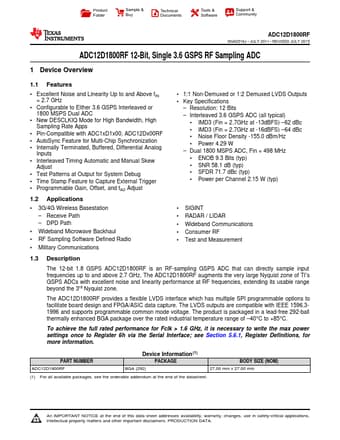

Preview of ADC12D1800RF PDF

Datasheet Details

Part number:

ADC12D1800RF

Manufacturer:

Texas Instruments ↗

File Size:

3.66 MB

Description:

Rf-sampling adc.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ADC12D1800RF SNAS518J

* JULY 2011

* REVISED .
