ADC12D1600RF, ADC12D1000RF Datasheet - Texas Instruments

ADC12D1600RF RF-Sampling ADC

The 12-bit 3.2- and 2-GSPS ADC12D1x00RF is an RF-sampling GSPS ADC that can directly sample input frequencies up to and above 2.7 GHz. The ADC12D1x00RF augments the very large Nyquist zone of TI’s GSPS ADCs with excellent noise and linearity performance at RF frequencies, extending its usable range .

ADC12D1600RF Features

* 1

* Excellent Noise and Linearity up to and Above fIN = 2.7 GHz

* Configurable to Either 3.2 or 2 GSPS Interleaved or 1600 or 1000 MSPS Dual ADC

* New DESCLKIQ Mode for High Bandwidth, High Sampling Rate Apps

* Pin-Compatible With ADC10D1x00, ADC12D1x00

* Auto

ADC12D1000RF-etcTI.pdf

This datasheet PDF includes multiple part numbers: ADC12D1600RF, ADC12D1000RF. Please refer to the document for exact specifications by model.

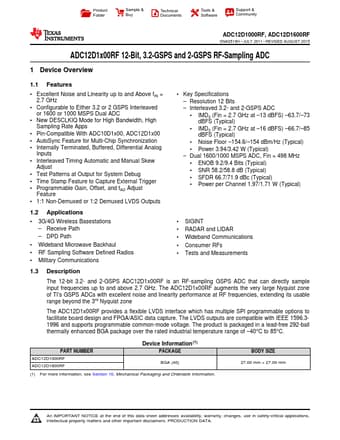

ADC12D1600RF Datasheet Preview Page 2 ADC12D1600RF Datasheet Preview Page 3

Datasheet Details

Part number:

ADC12D1600RF, ADC12D1000RF

Manufacturer:

Texas Instruments ↗

File Size:

3.54 MB

Description:

Rf-sampling adc.

Note:

This datasheet PDF includes multiple part numbers: ADC12D1600RF, ADC12D1000RF.
Please refer to the document for exact specifications by model.
