ADS1174

16-Bit Analog-to-Digital Converter

Texas Instruments

ADS1174 Features

* 1

* 234 Simultaneously Sample Four/Eight Channels

* Selectable Operating Modes: High-Speed: 52kSPS Data Rate, 31mW/ch Low-Power: 10kSPS Data Rate, 7mW/ch

* AC Performance: 25kHz Bandwidth 97dB SNR

* 105dB THD

* DC Performance: 2µV/°C Offset Drift 2ppm/°C Gain Dr

ADS1174 General Description

The ADS1174 (quad) and ADS1178 (octal) are multiple delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 52k samples-per-second (SPS), which allow synchronous sampling of four and eight channels. These devices use identical packages, and are also compatible with the high-perfor.

ADS1174 Datasheet (1.36 MB)

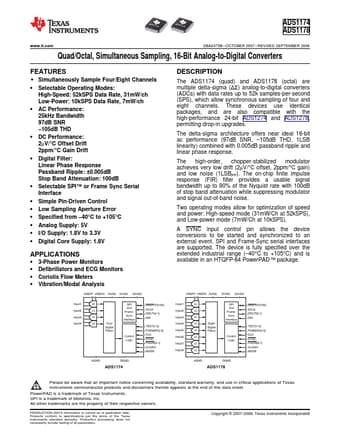

ADS1174 Datasheet Preview — Preview of ADS1174 PDF

Datasheet Details

Part number:

ADS1174

Manufacturer:

Texas Instruments ↗

File Size:

1.36 MB

Description:

16-bit analog-to-digital converter.
ADS1174 ADS1178 ADS1174 ADS1178 www.ti.com SBAS373B

* OCTOBER 2007

* REVISED SEPTEMBER 2008 Quad/Octal, Simultaneous Sampling, 16-.
