ADS1178, ADS1174, 16-Bit Analog-to-Digital Converter

ADS1174 ADS1178 ADS1174 ADS1178 www.ti.com SBAS373B * OCTOBER 2007 * REVISED SEPTEMBER 2008 Quad/Octal, Simultaneous Sampling, 16-.
The ADS1174 (quad) and ADS1178 (octal) are multiple delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 52k samples-per-second.

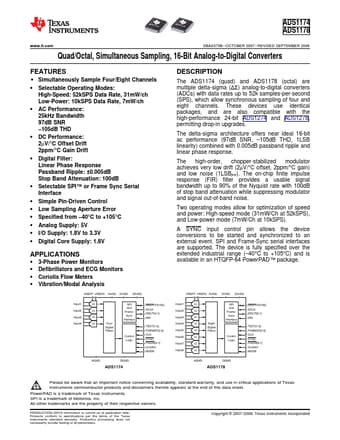

datasheet Preview Page 1 from Datasheet4u.com

ADS1174-etcTI.pdf

ADS1178 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS1178, ADS1174. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS1178, ADS1174

Manufacturer:

Texas Instruments ↗

File Size:

1.36 MB

Description:

16-Bit Analog-to-Digital Converter

Note:

This datasheet PDF includes multiple part numbers: ADS1178, ADS1174.
Please refer to the document for exact specifications by model.

Features

* 1
* 234 Simultaneously Sample Four/Eight Channels
* Selectable Operating Modes: High-Speed: 52kSPS Data Rate, 31mW/ch Low-Power: 10kSPS Data Rate, 7mW/ch
* AC Performance: 25kHz Bandwidth 97dB SNR
* 105dB THD
* DC Performance: 2µV/°C Offset Drift 2ppm/°C Gain Dr

Applications

* 3-Phase Power Monitors
* Defibrillators and ECG Monitors
* Coriolis Flow Meters
* Vibration/Modal Analysis VREFP VREFN AVDD DVDD IOVDD Input1 Input2 Input3 Input4 DS SPI and DS Frame- DS Sync Interface DS Four Digital Filters Control Logic AGND DGND
