ADS131A04, ADS131A02 Datasheet - Texas Instruments

ADS131A04, ADS131A02, Delta-Sigma ADC

Product Folder Order Now Technical Documents Tools & Software Support & Community ADS131A02, ADS131A04 SBAS590E * MARCH 2016 * RE.
The ADS131A02 and ADS131A04 devices are twoand four-channel, simultaneous-sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs).

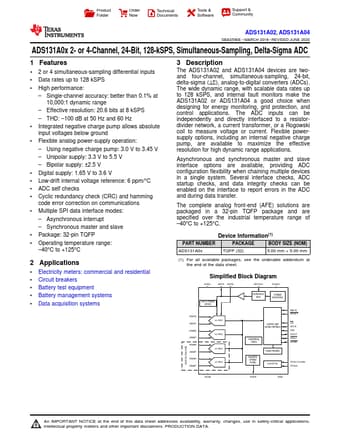

datasheet Preview Page 1 from Datasheet4u.com

ADS131A02-etcTI.pdf

ADS131A04 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADS131A04, ADS131A02. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ADS131A04, ADS131A02

Manufacturer:

Texas Instruments ↗

File Size:

2.62 MB

Description:

Delta-Sigma ADC

Note:

This datasheet PDF includes multiple part numbers: ADS131A04, ADS131A02.
Please refer to the document for exact specifications by model.

Features

* 1 2 or 4 simultaneous-sampling differential inputs
* Data rates up to 128 kSPS
* High performance:
* Single-channel accuracy: better than 0.1% at 10,000:1 dynamic range
* Effective resolution: 20.6 bits at 8 kSPS
* THD:
* 100 dB at 50 Hz and 60

Applications

* Electricity meters: commercial and residential
* Circuit breakers
* Battery test equipment
* Battery management systems
