ADS131E08S

Analog Front-End

Texas Instruments

ADS131E08S Features

* 1 Power-Up Time: 3 ms

* Eight Differential Simultaneous Sampling Inputs

* High Performance:

* Dynamic Range at 1 kSPS: 118 dB

* Crosstalk:

* 125 dB

* THD:

* 100 dB at 50 Hz and 60 Hz

* Low Power Consumption: 2 mW/Channel

ADS131E08S General Description

The ADS131E08S is a multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converter (ADC) with built-in programmable gain amplifiers (PGAs), an internal reference, and an internal oscillator. The ADC wide dynamic range, scalable data rates, and internal fault detect monito.

ADS131E08S Datasheet (1.18 MB)

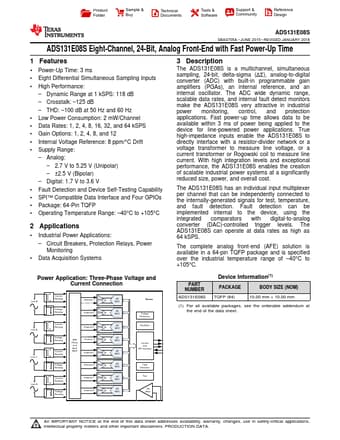

ADS131E08S Datasheet Preview — Preview of ADS131E08S PDF

Datasheet Details

Part number:

ADS131E08S

Manufacturer:

Texas Instruments ↗

File Size:

1.18 MB

Description:

Analog front-end.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community Reference Design ADS131E08S SBAS705A

* JUNE 2015
