ADS131E08

Delta-Sigma ADC

ADS131E08 Features

* 1 Eight Differential ADC Inputs

* Outstanding Performance:

* Dynamic Range: 118 dB at 1 kSPS

* Crosstalk:

* 110 dB

* THD:

* 90 dB at 50 Hz and 60 Hz

* Analog Supply Range Options:

* 3 V to 5 V (Unipolar)

* ±2.5 V (Bipolar

ADS131E08 General Description

The ADS131E0x are a family of multichannel, simultaneous sampling, 24-bit, delta-sigma (ΔΣ), analog-to-digital converters (ADCs) with a built-in programmable gain amplifier (PGA), internal reference, and an onboard oscillator. The ADC wide dynamic range, scalable data rates, and internal fault detec.

ADS131E08 Datasheet (1.91 MB)

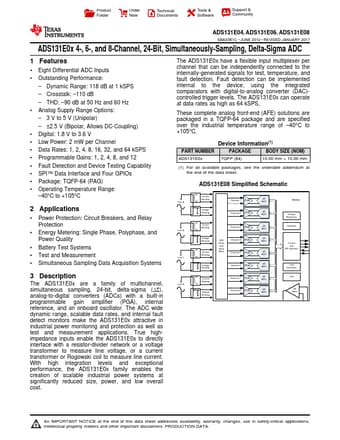

Preview of ADS131E08 PDF

Datasheet Details

Part number:

ADS131E08

Manufacturer:

Texas Instruments ↗

File Size:

1.91 MB

Description:

Delta-sigma adc.
Product Folder Order Now Technical Documents Tools & Software Support & Community ADS131E04, ADS131E06, ADS131E08 SBAS561C

* JUNE 2012
