ADS62P22 Description

ADS62P24, ADS62P25 ADS62P22, ADS62P23 www.ti.com SLAS576C * OCTOBER 2007 * REVISED OCTOBER 2011 DUAL CHANNEL, 12-BITS, 125/105/80/6.
ADS62P2X is a dual channel 12-bit A/D converter family with maximum sample rates up to 125 MSPS.

ADS62P22 Features

* 1
* Maximum Sample Rate: 125 MSPS
* 12-Bit Resolution with No Missing Codes
* 95 dB Crosstalk
* Parallel CMOS and DDR LVDS Output Options
* 3.5 dB Coarse Gain and Programmable Fine Gain up to 6 dB for SNR/SFDR Trade-Off
* Digital Processing Block with:

ADS62P22 Applications

* Wireless Communications Infrastructure
* Software Defined Radio
* Power Amplifier Linearization
* 802.16d/e
* Test and Measurement Instrumentation
* High Definition Video
* Medical Imaging

📥 Download Datasheet

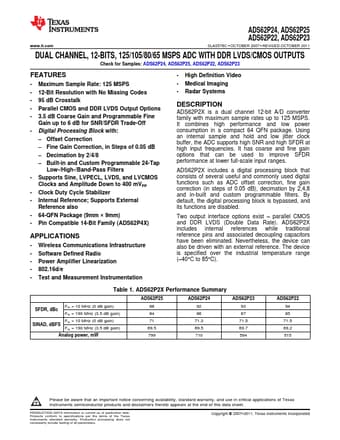

ADS62P22 Datasheet Preview — Preview of ADS62P22 PDF

Datasheet Details

Part number: ADS62P22
Manufacturer: Texas Instruments ↗
File Size: 2.05 MB
Datasheet: ADS62P22-etcTI.pdf
Description: Analog-to-Digital Converters
