ADS62P25

Analog-to-Digital Converters

ADS62P25 Features

* 1

* Maximum Sample Rate: 125 MSPS

* 12-Bit Resolution with No Missing Codes

* 95 dB Crosstalk

* Parallel CMOS and DDR LVDS Output Options

* 3.5 dB Coarse Gain and Programmable Fine Gain up to 6 dB for SNR/SFDR Trade-Off

* Digital Processing Block with:

ADS62P25 General Description

ADS62P2X is a dual channel 12-bit A/D converter family with maximum sample rates up to 125 MSPS. It combines high performance and low power consumption in a compact 64 QFN package. Using an internal sample and hold and low jitter clock buffer, the ADC supports high SNR and high SFDR at high input fr.

ADS62P25 Datasheet (2.05 MB)

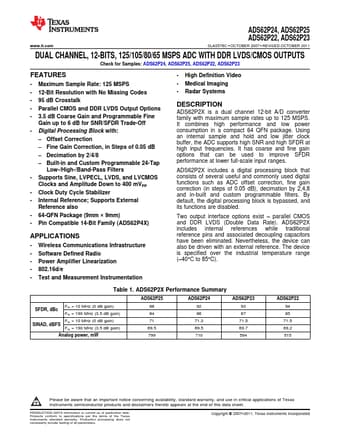

Preview of ADS62P25 PDF

Datasheet Details

Part number:

ADS62P25

Manufacturer:

Texas Instruments ↗

File Size:

2.05 MB

Description:

Analog-to-digital converters.
ADS62P24, ADS62P25 ADS62P22, ADS62P23 www.ti.com SLAS576C

* OCTOBER 2007

* REVISED OCTOBER 2011 DUAL CHANNEL, 12-BITS, 125/105/80/6.
