ADS62P28 Datasheet - Texas Instruments

ADS62P28, Analog-to-Digital Converters

www.ti.com ADS62P49 / ADS62P29 ADS62P48 / ADS62P28 SLAS635B * APRIL 2009 * REVISED JANUARY 2011 Dual Channel 14-/12-Bit, 250-/210-MS.
The ADS62Px9/x8 is a family of dual channel 14-bit and 12-bit A/D converters with sampling rates up to 250 MSPS.

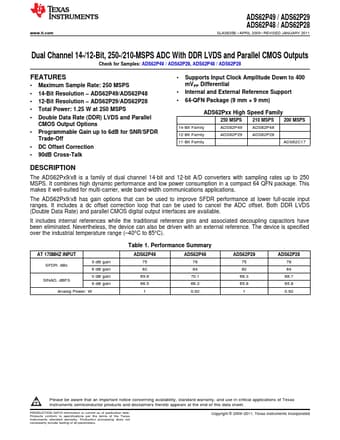

datasheet Preview Page 1 from Datasheet4u.com

ADS62P28-etcTI.pdf

ADS62P28 Datasheet Preview — Preview of ADS62P28 PDF

Datasheet Details

Part number:

ADS62P28

Manufacturer:

Texas Instruments ↗

File Size:

2.45 MB

Description:

Analog-to-Digital Converters

Features

* 1
* Maximum Sample Rate: 250 MSPS
* 14-Bit Resolution
* ADS62P49/ADS62P48
* 12-Bit Resolution
* ADS62P29/ADS62P28
* Total Power: 1.25 W at 250 MSPS
* Double Data Rate (DDR) LVDS and Parallel CMOS Output Options
* Programmable Gain up to

Applications

* The ADS62Px9/x8 has gain options that can be used to improve SFDR performance at lower full-scale input ranges. It includes a dc offset correction loop that can be used to cancel the ADC offset. Both DDR LVDS (Double Data Rate) and parallel CMOS digital output interfaces are available. It includes
