CD40106BM, CD40106B CMOS Hex Schmitt-Trigger Inverters

CD40106BM Description

Product Folder Order Now Technical Documents Tools & Software Support & Community CD40106B SCHS097F * NOVEMBER 1998 * REVISED MAR.
The CD40106B device consists of six Schmitt-Trigger inputs.

CD40106BM Features

* 1 Schmitt-Trigger Inputs
* Hysteresis Voltage (Typical):
* 0.9 V at VDD = 5 V
* 2.3 V at VDD = 10 V
* 3.5 V at VDD = 15 V
* Noise Immunity Greater Than 50%
* No Limit On Input Rise and Fall Times
* Standardized, Symmetrical Output Char

CD40106BM Applications

* Wave and Pulse Shapers
* High-Noise-Environment Systems
* Monostable Multivibrators

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CD40106BM, CD40106B. Please refer to the document for exact specifications by model.

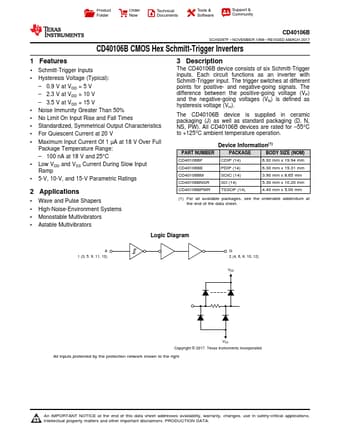

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CD40106BM, CD40106B
Manufacturer
Texas Instruments ↗
File Size
1.11 MB
Datasheet
CD40106B-etcTI.pdf
Description
CMOS Hex Schmitt-Trigger Inverters
Note
This datasheet PDF includes multiple part numbers: CD40106BM, CD40106B.
Please refer to the document for exact specifications by model.
