CSD25480F3T Datasheet, Mosfet, Texas Instruments

CSD25480F3T Features

  • Mosfet
  • 1 Low On-Resistance
  • Ultra-Low Qg and Qgd
  • Ultra-Small Footprint
      – 0.73 mm × 0.64 mm
  • Low Profile
      – 0.35-mm Max Heigh

PDF File Details

Part number:

CSD25480F3T

Manufacturer:

Texas Instruments ↗

File Size:

1.10MB

Download:

📄 Datasheet

Description:

P-channel power mosfet. This   –20-V, 110-mΩ, P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld a

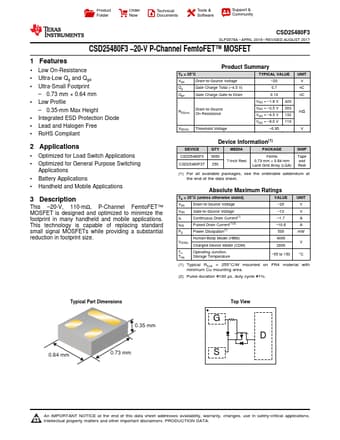

Datasheet Preview: CSD25480F3T 📥 Download PDF (1.10MB)
Page 2 of CSD25480F3T Page 3 of CSD25480F3T

CSD25480F3T Application

  • Applications
  • Optimized for Load Switch Applications
  • Optimized for General Purpose Switching Applications
  • Battery Appli

TAGS

CSD25480F3T
P-Channel
Power
MOSFET
Texas Instruments
