CSD25483F4T, CSD25483F4 P-Channel Power MOSFET

CSD25483F4T Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD25483F4 SLPS449D * OCTOBER 2013 * REVISED.
This 210 mΩ, 20 V P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applications.

CSD25483F4T Features

* 1 Ultra-Low On-Resistance
* Ultra-Low Qg and Qgd
* High Operating Drain Current
* Ultra-Small Footprint (0402 Case Size)
* 1.0 mm × 0.6 mm
* Ultra-Low Profile
* 0.35 mm Max Height
* Integrated ESD Protection Diode
* Rated >4 kV

CSD25483F4T Applications

* Optimized for load Switch Applications
* Optimized for General Purpose Switching Applications
* Battery Applications

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CSD25483F4T, CSD25483F4. Please refer to the document for exact specifications by model.

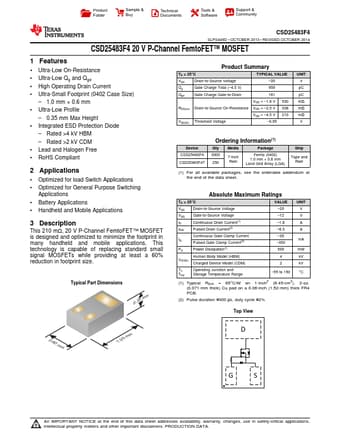

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CSD25483F4T, CSD25483F4
Manufacturer
Texas Instruments ↗
File Size
1.42 MB
Datasheet
CSD25483F4-etcTI.pdf
Description
P-Channel Power MOSFET
Note
This datasheet PDF includes multiple part numbers: CSD25483F4T, CSD25483F4.
Please refer to the document for exact specifications by model.
