CSD25483F4

P-Channel Power MOSFET

Texas Instruments

CSD25483F4 Features

* 1 Ultra-Low On-Resistance

* Ultra-Low Qg and Qgd

* High Operating Drain Current

* Ultra-Small Footprint (0402 Case Size)

* 1.0 mm × 0.6 mm

* Ultra-Low Profile

* 0.35 mm Max Height

* Integrated ESD Protection Diode

* Rated >4 kV

CSD25483F4 General Description

This 210 mΩ, 20 V P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applications. This technology is capable of replacing standard small signal MOSFETs while providing at least a 60% reduction in footprint size. . Typical Part Dimensions 0.35 .

CSD25483F4 Datasheet (1.42 MB)

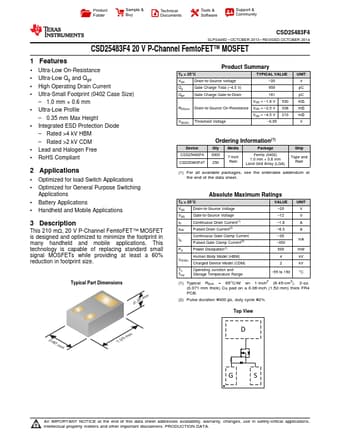

CSD25483F4 Datasheet Preview — Preview of CSD25483F4 PDF

Datasheet Details

Part number:

CSD25483F4

Manufacturer:

Texas Instruments ↗

File Size:

1.42 MB

Description:

P-channel power mosfet.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD25483F4 SLPS449D

* OCTOBER 2013

* REVISED.
