CSD25481F4T Datasheet, Mosfet, Texas Instruments

CSD25481F4T Features

  • Mosfet
  • 1 Ultra-Low On Resistance
  • Ultra-Low Qg and Qgd
  • High Operating Drain Current
  • Ultra-Small Footprint (0402 Case Size)
      – 1 mm × 0.6 mm

PDF File Details

Part number:

CSD25481F4T

Manufacturer:

Texas Instruments ↗

File Size:

373.31kb

Download:

📄 Datasheet

Description:

P-channel power mosfet. This 90 mΩ, 20 V P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applicati

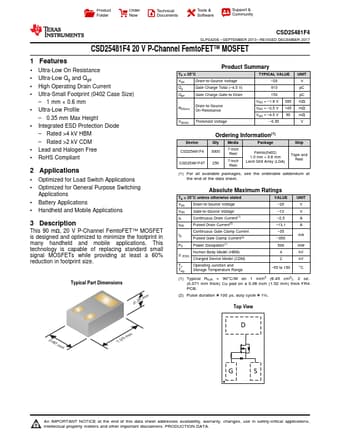

Datasheet Preview: CSD25481F4T 📥 Download PDF (373.31kb)
Page 2 of CSD25481F4T Page 3 of CSD25481F4T

CSD25481F4T Application

  • Applications
  • Optimized for Load Switch Applications
  • Optimized for General Purpose Switching Applications
  • Battery Appli

TAGS

CSD25481F4T
P-Channel
Power
MOSFET
Texas Instruments
