CY74FCT2541T Datasheet - Texas Instruments

CY74FCT2541T - 8-Bit Buffer/Line Driver

The CY74FCT2541T is an octal buffer and line driver designed to be employed as a memory-address driver, clock driver, and bus-oriented transmitter/receiver.

On-chip termination resistors at the outputs reduce system noise caused by reflections.

The CY74FCT2541T can replace the CY74FCT541T to reduce

D Function and Pinout Compatible With FCT and F Logic D 25-Ω Output Series Resistors to Reduce Transmission-Line Reflection Noise D Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions D Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics D Ioff Supports Partial-Power-Down Mode Operation D ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101) D Matched

CY74FCT2541T-etcTI.pdf

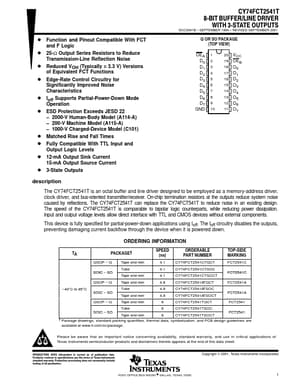

Preview of CY74FCT2541T PDF
CY74FCT2541T Datasheet Preview Page 2 CY74FCT2541T Datasheet Preview Page 3

Datasheet Details

Part number:

CY74FCT2541T

Manufacturer:

Texas Instruments ↗

File Size:

860.06 KB

Description:

8-bit buffer/line driver.
