CY74FCT2574T Datasheet - Texas Instruments

CY74FCT2574T - 8-BIT REGISTER

The CY74FCT2574T is a high-speed, low-power, octal D-type flip-flop featuring separate D-type inputs for each flip-flop.

On-chip termination resistors at the outputs reduce system noise caused by reflections.

The CY74FCT2574T can replace the CY74FCT574T to reduce noise in an existing design.

This de

D Function and Pinout Compatible With FCT and F Logic D 25-Ω Output Series Resistors to Reduce Transmission-Line Reflection Noise D Reduced VOH (Typically = 3.3 V) Version of Equivalent FCT Functions D Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics D Ioff Supports Partial-Power-Down Mode Operation D Matched Rise and Fall Times D Fully Compatible With TTL Input and Output Logic Levels D ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A)

CY74FCT2574T-etcTI.pdf

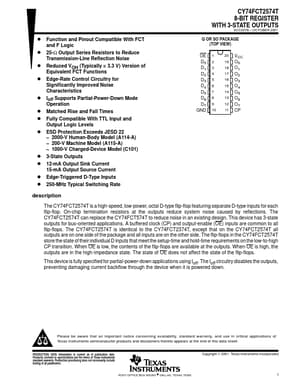

Preview of CY74FCT2574T PDF
CY74FCT2574T Datasheet Preview Page 2 CY74FCT2574T Datasheet Preview Page 3

Datasheet Details

Part number:

CY74FCT2574T

Manufacturer:

Texas Instruments ↗

File Size:

1.08 MB

Description:

8-bit register.
