CY74FCT257T

QUAD 2-INPUT MULTIPLEXER

CY74FCT257T General Description

The CY74FCT257T has four identical two-input multiplexers that select four bits of data from two sources under the control of a common data-select (S) input. The I0 inputs are selected when S is low, and the I1 inputs are selected when S is high. Data at the output is noninverted. The CY74FCT257T is.

CY74FCT257T Datasheet (1.82 MB)

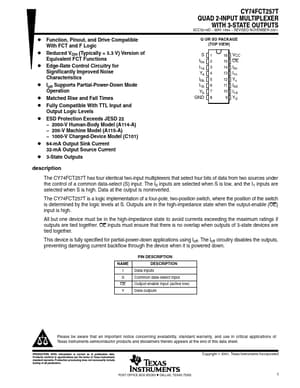

Preview of CY74FCT257T PDF

Datasheet Details

Part number:

CY74FCT257T

Manufacturer:

Texas Instruments ↗

File Size:

1.82 MB

Description:

Quad 2-input multiplexer.
D Function, Pinout, and Drive Compatible With FCT and F Logic D Reduced VOH (Typically = 3.3 V) Version of Equivalent FCT Functions D Edge-Rate Contro.
