DAC3482 - 1.25 GSPS Digital-to-Analog Converter

Texas Instruments

📥 Download Datasheet

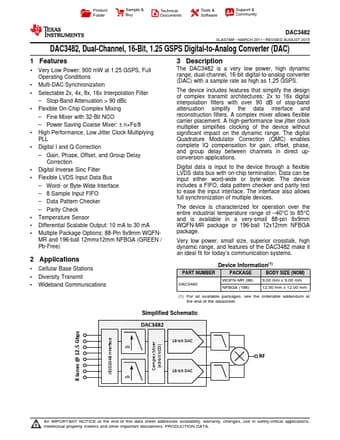

DAC3482 Datasheet Preview — Preview of DAC3482 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAC3482
Manufacturer	Texas Instruments ↗
File Size	2.51 MB
Description	1.25 GSPS Digital-to-Analog Converter
Datasheet	DAC3482-etcTI.pdf

DAC3482 Product details

Description

The DAC3482 is a very low power, high dynamic range, dual-channel, 16-bit digital-to-analog converter (DAC) with a sample rate as high as 1.25 GSPS.

Features

1 Very Low Power: 900 mW at 1.25 GSPS, Full Operating Conditions.
Multi-DAC Synchronization.
Selectable 2x, 4x, 8x, 16x Interpolation Filter.
Stop-Band Attenuation > 90 dBc.
Flexible On-Chip Complex Mixing.
Fine Mixer with 32-Bit NCO.
Power Saving Coarse Mixer: ± n×Fs/8.
High Performance, Low Jitter Clock Multiplying PLL.
Digital I and Q Correction.
Gain, Phase, Offset, and Group Delay Correction.
