DAC34SH84 - 1.5 GSPS Digital-to-Analog Converter

Texas Instruments

📥 Download Datasheet

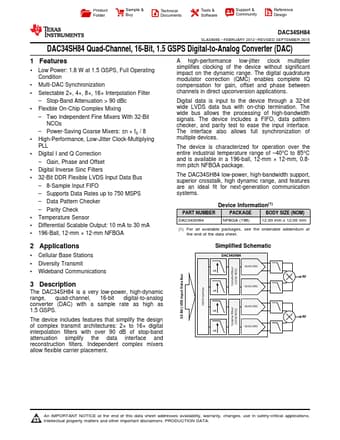

DAC34SH84 Datasheet Preview — Preview of DAC34SH84 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAC34SH84
Manufacturer	Texas Instruments ↗
File Size	1.75 MB
Description	1.5 GSPS Digital-to-Analog Converter
Datasheet	DAC34SH84-etcTI.pdf

DAC34SH84 Product details

Description

The DAC34SH84 is a very low-power, high-dynamic range, quad-channel, 16-bit digital-to-analog converter (DAC) with a sample rate as high as 1.5 GSPS.

Features

1 Low Power: 1.8 W at 1.5 GSPS, Full Operating Condition.
Multi-DAC Synchronization.
Selectable 2×, 4×, 8×, 16× Interpolation Filter.
Stop-Band Attenuation > 90 dBc.
Flexible On-Chip Complex Mixing.
Two Independent Fine Mixers With 32-Bit NCOs.
Power-Saving Coarse Mixers: ±n × fS / 8.
High-Performance, Low-Jitter Clock-Multiplying PLL.
Digital I and Q Correction.
Gain, Phase and Offset.
Digital Inv.
