DAC3484 - 1.25 GSPS Digital-to-Analog Converter

Texas Instruments

📥 Download Datasheet

DAC3484 Datasheet Preview — Preview of DAC3484 PDF

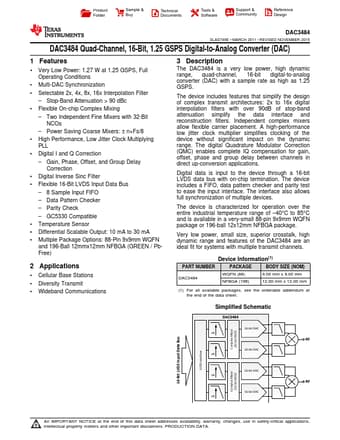

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	DAC3484
Manufacturer	Texas Instruments ↗
File Size	2.54 MB
Description	1.25 GSPS Digital-to-Analog Converter
Datasheet	DAC3484-etcTI.pdf

DAC3484 Product details

Description

The DAC3484 is a very low power, high dynamic range, quad-channel, 16-bit digital-to-analog converter (DAC) with a sample rate as high as 1.25 GSPS.

Features

1 Very Low Power: 1.27 W at 1.25 GSPS, Full Operating Conditions.
Multi-DAC Synchronization.
Selectable 2x, 4x, 8x, 16x Interpolation Filter.
Stop-Band Attenuation > 90 dBc.
Flexible On-chip Complex Mixing.
Two Independent Fine Mixers with 32-Bit NCOs.
Power Saving Coarse Mixers: ± n×Fs/8.
High Performance, Low Jitter Clock Multiplying PLL.
Digital I and Q Correction.
Gain, Phase, Offset, and Group Delay Co.
