DAC7564

Quad 12-Bit D/A Converter

Texas Instruments

DAC7564 Features

* 1

* 234 Relative Accuracy: 0.5LSB

* Glitch Energy: 0.15nV-s

* Internal Reference:

* 2.5V Reference Voltage (enabled by default)

* 0.004% Initial Accuracy (typ)

* 2ppm/°C Temperature Drift (typ)

* 5ppm/°C Temperature Drift (max)

* 20mA Si

DAC7564 General Description

The DAC7564 is a low-power, voltage-output, four-channel, 12-bit digital-to-analog converter (DAC). The device includes a 2.5V, 2ppm/°C internal reference (enabled by default), giving a full-scale output voltage range of 2.5V. The internal reference has an initial accuracy of 0.02% and can source up.

DAC7564 Datasheet (1.79 MB)

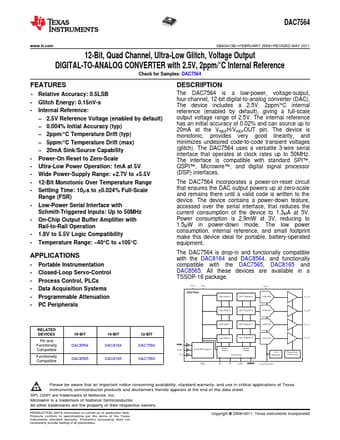

DAC7564 Datasheet Preview — Preview of DAC7564 PDF

Datasheet Details

Part number:

DAC7564

Manufacturer:

Texas Instruments ↗

File Size:

1.79 MB

Description:

Quad 12-bit d/a converter.
DAC7564 DAC7564 www.ti.com SBAS413B

* FEBRUARY 2008

* REVISED MAY 2011 12-Bit, Quad Channel, Ultra-Low Glitch, Voltage Output DIG.
