DAC7541A Low Cost 12-Bit CMOS Four-Quadrant Multiplying DIGITAL-TO-ANALOG CONVERTER

The Burr-Brown DAC7541A is a low cost 12-bit, four-quadrant multiplying digital-to-analog converter. Laser-trimmed thin-film resistors on a monolithic CMOS circuit provide true 12-bit integral and differential linearity over the full specified temperature range. DAC7541A is a direct, improved pin-fo.

DAC7541A Features

* q FULL FOUR-QUADRANT MULTIPLICATION q 12-BIT END-POINT LINEARITY q DIFFERENTIAL LINEARITY ±1/2LSB MAX OVER TEMPERATURE q MONOTONICITY GUARANTEED OVER TEMPERATURE q TTL-/CMOS-COMPATIBLE q SINGLE +5V TO +15V SUPPLY q LATCH-UP RESISTANT q 7521/7541/7541A REPLACEMENT q PACKAGES: Plastic DIP, Plastic SOI

DAC7541A_Burr-BrownCorporation.pdf

This datasheet PDF includes multiple part numbers: DAC7541A, DAC7541A_Burr. Please refer to the document for exact specifications by model.

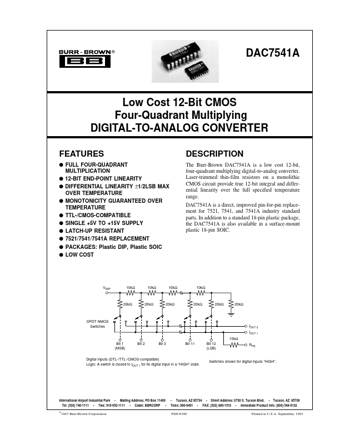

DAC7541A Datasheet Preview Page 2 DAC7541A Datasheet Preview Page 3

Datasheet Details

Part number:

DAC7541A, DAC7541A_Burr

Manufacturer:

Burr-Brown Corporation

File Size:

109.83 KB

Description:

Low cost 12-bit cmos four-quadrant multiplying digital-to-analog converter.

Note:

This datasheet PDF includes multiple part numbers: DAC7541A, DAC7541A_Burr.
Please refer to the document for exact specifications by model.
