DAC7553 Datasheet - Texas Instruments

DAC7553 Dual 12-Bit D/A Converter

The DAC7553 is a 12-bit, dual-channel, voltage-output DAC with exceptional linearity and monotonicity. Its proprietary architecture minimizes undesired transients such as code-to-code glitch and channel-to-channel crosstalk. The low-power DAC7553 operates from a single 2.7-V to 5.5-V supply. The DAC.

DAC7553 Features

* 2.7-V to 5.5-V Single Supply

* 12-Bit Linearity and Monotonicity

* Rail-to-Rail Voltage Output

* Settling Time: 5 µs (Max)

* Ultralow Glitch Energy: 0.1 nVs

* Ultralow Crosstalk:

* 100 dB

* Low Power: 440 µA (Max)

* Per-Channel

DAC7553 Datasheet (1.49 MB)

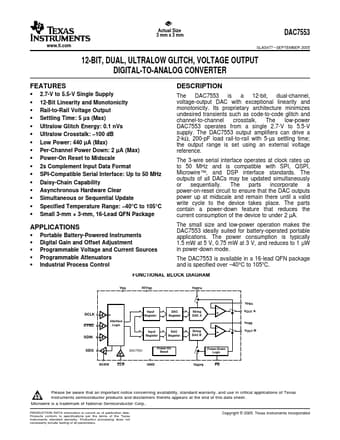

Preview of DAC7553 PDF

Datasheet Details

Part number:

DAC7553

Manufacturer:

Texas Instruments ↗

File Size:

1.49 MB

Description:

Dual 12-bit d/a converter.
