DAC7513 DIGITAL-TO-ANALOG CONVERTER

The DAC7513 is a low-power, single, 12-bit buffered voltage output Digital-to-Analog Connector (DAC). The on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The DAC7513 uses a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatibl.

DAC7513 Features

* q microPOWER OPERATION: 115µA at 5V q POWER-ON RESET TO ZERO q POWER SUPPLY: +2.7V to +5.5V q ENSURED MONOTONIC BY DESIGN q SETTLING TIME: 10µs to 1LSB q LOW-POWER SERIAL INTERFACE WITH SCHMITT-TRIGGERED INPUTS q ON-CHIP OUTPUT BUFFER AMPLIFIER, RAIL-TO-RAIL OPERATION q SYNC INTERRUPT FACILITY q SOT

DAC7513-Burr-Brown.pdf

This datasheet PDF includes multiple part numbers: DAC7513, DAC7513-Burr. Please refer to the document for exact specifications by model.

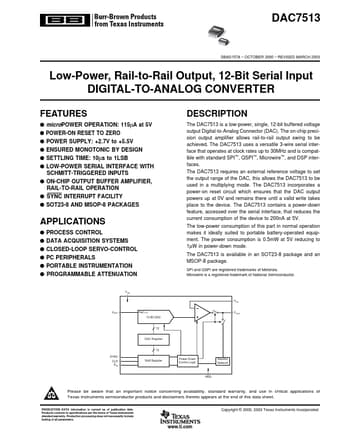

DAC7513 Datasheet Preview Page 2 DAC7513 Datasheet Preview Page 3

Datasheet Details

Part number:

DAC7513, DAC7513-Burr

Manufacturer:

Burr-Brown

File Size:

1.20 MB

Description:

Digital-to-analog converter.

Note:

This datasheet PDF includes multiple part numbers: DAC7513, DAC7513-Burr.
Please refer to the document for exact specifications by model.
