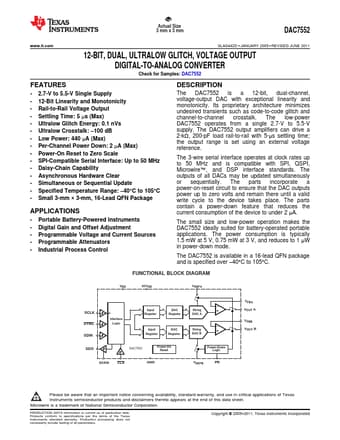

DAC7552 Datasheet, Converter, Texas Instruments

DAC7552 Features

• Converter 1
• 2 2.7-V to 5.5-V Single Supply
• 12-Bit Linearity and Monotonicity
• Rail-to-Rail Voltage Output
• Settling Time: 5 µs (Max)
• Ultralow Glitch

PDF File Details

Part number:

DAC7552

Manufacturer:

Texas Instruments ↗

File Size:

1.45MB

Download:

📄 Datasheet

Description:

Dual 12-bit d/a converter. The DAC7552 is a 12-bit, dual-channel, voltage-output DAC with exceptional linearity and monotonicity. Its proprietary architecture m

DAC7552 Application

• Applications
• Portable Battery-Powered Instruments
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current
