DAC7551, DAC7551-Burr DIGITAL-TO-ANALOG CONVERTER

DAC7551 Description

BurrĆBrown Products from Texas Instruments DAC7551 SLAS441E * MARCH 2005 * REVISED APRIL 2007 12-Bit, Ultra-Low Glitch, Voltage Outp.
The DAC7551 is a single-channel, voltage-output digital-to-analog converter (DAC) with exceptional linearity and monotonicity, and a proprietary archi.

DAC7551 Features

* Relative Accuracy (INL): ±0.35LSB
* Ultra-Low Glitch Energy: 0.1nV-s
* Low Power Operation: 100µA at 2.7V
* Power-On Reset to Zero Scale
* Power Supply: 2.7V to 5.5V Single Supply
* Power-Down: 0.05µA at 2.7V
* 12-Bit Linearity and Monotonici

DAC7551 Applications

* Portable, Battery-Powered Instruments
* Digital Gain and Offset Adjustment
* Programmable Voltage and Current Sources
* Programmable Attenuators

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: DAC7551, DAC7551-Burr. Please refer to the document for exact specifications by model.

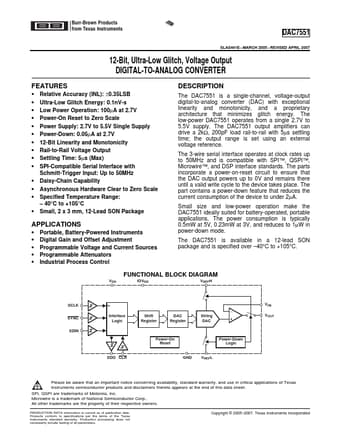

datasheet Preview Page 2 datasheet Preview Page 3
