DAC7616, DAC7616-Burr Datasheet - Burr-Brown

DAC7616 DIGITAL-TO-ANALOG CONVERTER

The DAC7616 is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic performance over the *40°C to +85°C temperature range. An asynchronous reset clears all registers to either mid-scale (800H) or zeroscale (000H), selectable via the .

DAC7616 Features

* q LOW POWER: 3mW q SETTLING TIME: 10µs to 0.012% q 12-BIT LINEARITY AND MONOTONICITY:

* 40°C to +85°C q USER SELECTABLE RESET TO MID- SCALE OR ZERO-SCALE q SECOND-SOURCE for DAC8420 q SO-16 or SSOP-20 PACKAGES q SINGLE SUPPLY +3V OPERATION APPLICATIONS q ATE PIN ELECTRONICS q PROCESS CONTROL

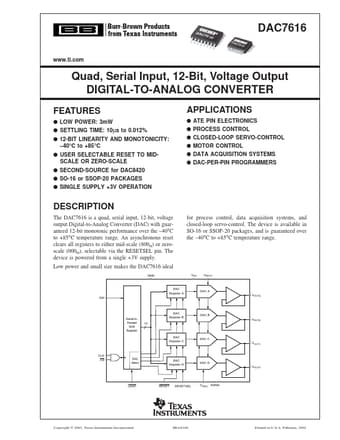

DAC7616-Burr-Brown.pdf

DAC7616 Datasheet Preview — This datasheet PDF includes multiple part numbers: DAC7616, DAC7616-Burr. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DAC7616, DAC7616-Burr

Manufacturer:

Burr-Brown

File Size:

871.93 KB

Description:

Digital-to-analog converter.

Note:

This datasheet PDF includes multiple part numbers: DAC7616, DAC7616-Burr.
Please refer to the document for exact specifications by model.
