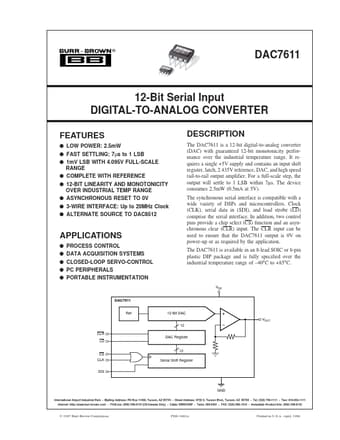

DAC7611 Datasheet, Converter, Burr-Brown Corporation

DAC7611 Features

• Converter q LOW POWER: 2.5mW q FAST SETTLING: 7µs to 1 LSB q 1mV LSB WITH 4.095V FULL-SCALE RANGE q COMPLETE WITH REFERENCE q 12-BIT LINEARITY AND MONOTONICITY OVER INDUSTRIAL TEMP RANGE q ASYNCH

PDF File Details

Part number:

DAC7611

Manufacturer:

Burr-Brown Corporation

File Size:

182.06kb

Download:

📄 Datasheet

Description:

12-bit serial input digital-to-analog converter. The DAC7611 is a 12-bit digital-to-analog converter (DAC) with guaranteed 12-bit monotonicity performance over the industrial tempera

DAC7611 Application

• Applications q PROCESS CONTROL q DATA ACQUISITION SYSTEMS q CLOSED-LOOP SERVO-CONTROL q PC PERIPHERALS q PORTABLE INSTRUMENTATION VDD DAC7611 Ref
