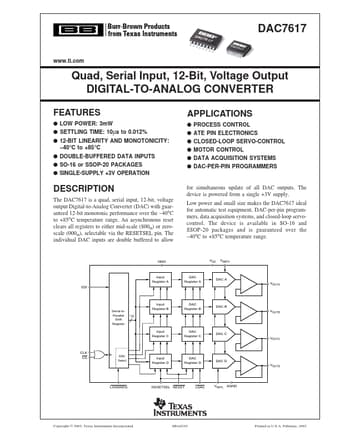

DAC7617 Datasheet, Converter, Burr-Brown

DAC7617 Features

• Converter q LOW POWER: 3mW q SETTLING TIME: 10µs to 0.012% q 12-BIT LINEARITY AND MONOTONICITY:
    –40°C to +85°C q DOUBLE-BUFFERED DATA INPUTS q SO-16 or SSOP-20 PACKAGES q SINGLE-S

PDF File Details

Part number:

DAC7617

Manufacturer:

Burr-Brown

File Size:

337.65kb

Download:

📄 Datasheet

Description:

Digital-to-analog converter. The DAC7617 is a quad, serial input, 12-bit, voltage output Digital-to-Analog Converter (DAC) with guaranteed 12-bit monotonic perfor

DAC7617 Application

• Applications q PROCESS CONTROL q ATE PIN ELECTRONICS q CLOSED-LOOP SERVO-CONTROL q MOTOR CONTROL q DATA ACQUISITION SYSTEMS q DAC-PER-PIN PROGRAMMER
