DAC7612

Dual/ 12-Bit Serial Input DIGITAL-TO-ANALOG CONVERTER

Burr-Brown Corporation

DAC7612 Features

* q LOW POWER: 3.7mW q FAST SETTLING: 7µs to 1 LSB q 1mV LSB WITH 4.095V FULL-SCALE RANGE q COMPLETE WITH REFERENCE q 12-BIT LINEARITY AND MONOTONICITY OVER INDUSTRIAL TEMP RANGE q 3-WIRE INTERFACE: Up to 20MHz Clock q SMALL PACKAGE: 8-Lead SOIC DESCRIPTION The DAC7612 is a dual, 12-bit digital-to-an

DAC7612 General Description

The DAC7612 is a dual, 12-bit digital-to-analog converter (DAC) with guaranteed 12-bit monotonicity performance over the industrial temperature range. It requires a single +5V supply and contains an input shift register, latch, 2.435V reference, a dual DAC, and high speed rail-to-rail output amplifi.

DAC7612 Datasheet (126.49 KB)

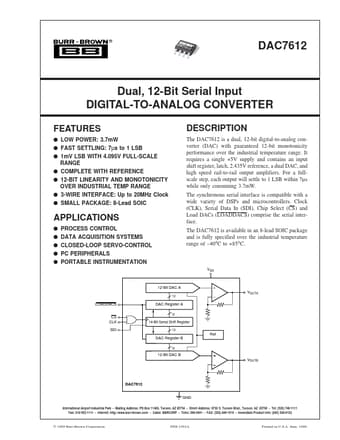

DAC7612 Datasheet Preview — Preview of DAC7612 PDF

Datasheet Details

Part number:

DAC7612

Manufacturer:

Burr-Brown Corporation

File Size:

126.49 KB

Description:

Dual/ 12-bit serial input digital-to-analog converter.
