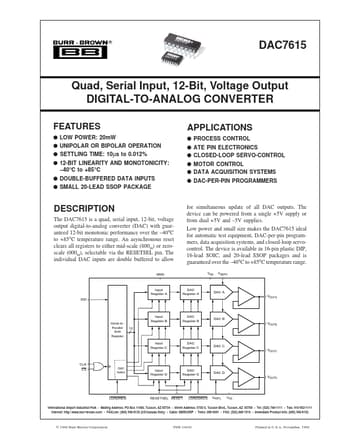

DAC7615 Datasheet, Converter, Burr-Brown Corporation

DAC7615 Features

• Converter q LOW POWER: 20mW q UNIPOLAR OR BIPOLAR OPERATION q SETTLING TIME: 10µs to 0.012% q 12-BIT LINEARITY AND MONOTONICITY:
    –40°C to +85°C q DOUBLE-BUFFERED DATA INPUTS q SMA

PDF File Details

Part number:

DAC7615

Manufacturer:

Burr-Brown Corporation

File Size:

485.16kb

Download:

📄 Datasheet

Description:

Digital-to-analog converter. The DAC7615 is a quad, serial input, 12-bit, voltage output digital-to-analog converter (DAC) with guaranteed 12-bit monotonic perfor

DAC7615 Application

• Applications q PROCESS CONTROL q ATE PIN ELECTRONICS q CLOSED-LOOP SERVO-CONTROL q MOTOR CONTROL q DATA ACQUISITION SYSTEMS q DAC-PER-PIN PROGRAMMER
