DAC8881 - DIGITAL-TO-ANALOG CONVERTER

Texas Instruments

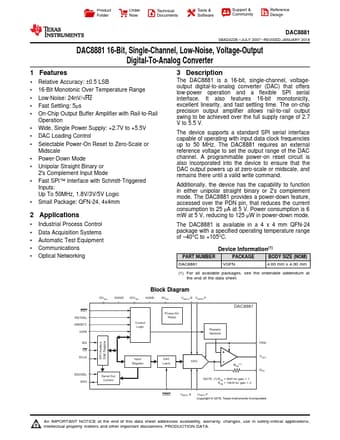

DAC8881 Datasheet Preview — Preview of DAC8881 PDF

Datasheet Details

Part number	DAC8881
Manufacturer	Texas Instruments ↗
File Size	2.32 MB
Description	DIGITAL-TO-ANALOG CONVERTER
Datasheet	DAC8881-etcTI.pdf

DAC8881 Product details

Description

The DAC8881 is a 16-bit, single-channel, voltageoutput digital-to-analog converter (DAC) that offers low-power operation and a flexible SPI serial interface.

Features

1 Relative Accuracy: ±0.5 LSB.
16-Bit Monotonic Over Temperature Range.
Low-Noise: 24nV/√Hz.
Fast Settling: 5μs.
On-Chip Output Buffer Amplifier with Rail-to-Rail Operation.
Wide, Single Power Supply: +2.7V to +5.5V.
DAC Loading Control.
Selectable Power-On Reset to Zero-Scale or Midscale.
Power-Down Mode.
Unipolar Straight Binary or 2's Complement Input Mode.
Fast SPI™ Interface with Schmitt-Trigg.
