DDC2256A - Current-Input Analog-To-Digital Converter

Product Overview

Texas Instruments

📥 Download Datasheet

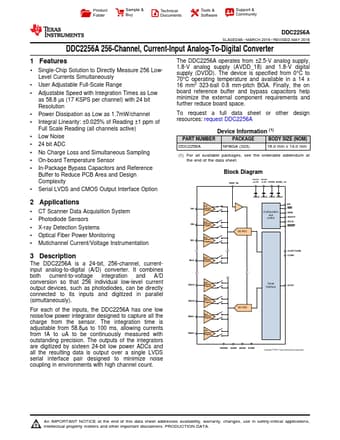

DDC2256A Current-Input Analog-To-Digital Converter by Texas Instruments - Datasheet Preview — Datasheet preview – DDC2256A

Datasheet Details

Part number	DDC2256A
Manufacturer	Texas Instruments
File Size	296.56 KB
Description	Current-Input Analog-To-Digital Converter
Datasheet	DDC2256A Datasheet
Additional preview pages of the DDC2256A datasheet.

Product details

Description

The DDC2256A is a 24-bit, 256-channel, currentinput analog-to-digital (A/D) converter.

Features

1 Single-Chip Solution to Directly Measure 256 LowLevel Currents Simultaneously.
User Adjustable Full-Scale Range.
Adjustable Speed with Integration Times as Low as 58.8 µs (17 KSPS per channel) with 24 bit Resolution.
Power Dissipation as Low as 1.7mW/channel.
Integral Linearity: ±0.025% of Reading ±1 ppm of Full Scale Reading (all channels active).
Low Noise.
24 bit ADC.
No Charge Loss and Simultaneous Sampling.
O.
