DDC264 Current-Input Analog-to-Digital Converter

DDC264 Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DDC264 SBAS368D * MAY 2006 * REVISED DECEMBE.
The DDC264 is a 20-bit, 64-channel, current-input analog-to-digital (A/D) converter.

DDC264 Features

* 1 Single-Chip Solution to Directly Measure 64 LowLevel Currents
* Proven High-Precision, True Integrating Architecture With 100% Charge Collection

DDC264 Applications

* Very Low Power: 3 mW/channel
* Extremely Linear: INL = ±0.025% of Reading ±1 ppm of FSR
* Low Noise: 6.3 ppm of FSR
* Adjustable Full-Scale Range
* Adjustable Speed
* Data Rates up to 6 kSPS With 20-bit Performance
* Integration Times as low

📥 Download Datasheet

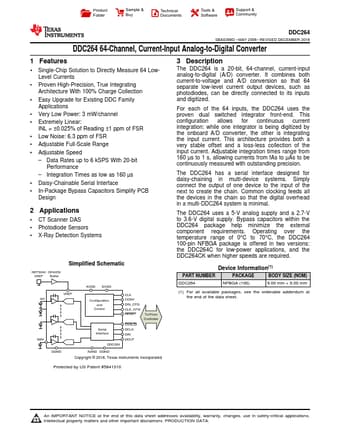

Preview of DDC264 PDF
datasheet Preview Page 2 datasheet Preview Page 3
