DLPA100 Datasheet - Texas Instruments

DLPA100 Power Management and Motor Driver

DLPA100 is a dedicated power management and motor control driver device for the DLP® 4K UHD TRP display chipset. The DLPA100, together with the DLP660TE digital micromirror device and DLPC4422 display controller, comprise the chipset. This solution is a great fit for display systems that require hig.

DLPA100 Features

* 1 3.3-V Switching Regulator - Logic Supply

* 5-V Switching Regulator with Enable - Analog Circuit Power Supply

* 1.0 V to 3.3 V Adjustable Switching Regulator - Core Supply

* Adjustable Linear Regulator with Enable - PLL Supply

* Adjustable Linear Regulator C

DLPA100 Datasheet (761.87 KB)

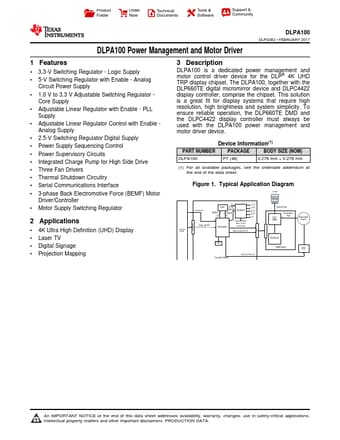

Preview of DLPA100 PDF
DLPA100 Datasheet Preview Page 2 DLPA100 Datasheet Preview Page 3

Datasheet Details

Part number:

DLPA100

Manufacturer:

Texas Instruments ↗

File Size:

761.87 KB

Description:

Power management and motor driver.
