DLPA300 - DLP Digital Micromirror Driver

Product Overview

Texas Instruments

Datasheet Details

Part number	DLPA300
Manufacturer	Texas Instruments
File Size	1.01 MB
Description	DLP Digital Micromirror Driver
Datasheet	DLPA300 Datasheet

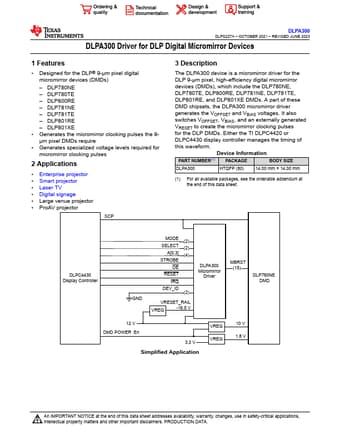

Additional preview pages of the DLPA300 datasheet.

Product details

Description

The DLPA300 device is a micromirror driver for the DLP 9-μm pixel, high-efficiency digital micromirror devices (DMDs), which include the DLP780NE, DLP780TE, DLP800RE, DLP781NE, DLP781TE, DLP801RE, and DLP801XE DMDs.

Features

Designed for the DLP® 9-μm pixel digital micromirror devices (DMDs).
DLP780NE.
DLP780TE.
DLP800RE.
DLP781NE.
DLP781TE.
DLP801RE.
DLP801XE.
Generates the micromirror clocking pulses the 9μm pixel DMDs require.
Generates specialized voltage levels required for micromirror clocking pulses 2.
