DLPA2000 - Power Management and LED/Lamp Driver

DLPA2000 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community DLPA2000 DLPS043B * JUNE 2014 * REVISED FEBRUAR.
The DLPA2000 is a dedicated PMIC/RGB LED/lamp driver for the DLP2010 and DLP2010NIR digital micromirror devices (DMD) when used with a DLPC3430, DLPC3.

DLPA2000 Features

* 1 High Efficiency RGB LED/Lamp Driver with BuckBoost DC-to-DC Converter, DMD Supplies, DPP Core Supply, 1.8-V Load Switch, and Measurement System in a Small Chip-Scale Package
* Three Low-Impedance (30 mΩ Typical at 27°C) MOSFET Switches for Channel Selection
* Independent,

DLPA2000 Applications

* On-Chip Motor Driver
* DMD Regulators
* Requires Only a Single Inductor
* VOFS: 10 V
* VBIAS: 18 V
* VRST:
* 14 V
* Passive Discharge to GND When Disabled
* DPP 1.1-V Core Supply
* Synchronous Step-Down Converter with I

📥 Download Datasheet

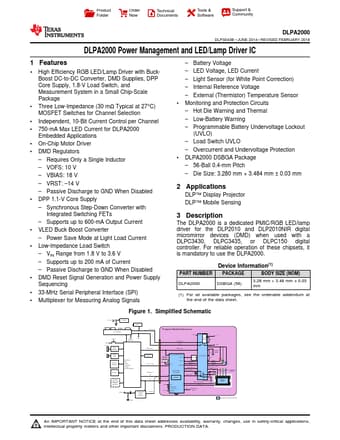

Preview of DLPA2000 PDF
datasheet Preview Page 2 datasheet Preview Page 3
