DLPA2005

Power Management and LED/Lamp Driver

DLPA2005 Features

* High Efficiency RGB LED/Lamp Driver With BuckBoost DC-to-DC Converter, DMD Supplies, DPP Core Supply, 1.8-V Load Switch, and Measurement System in a Small Chip-Scale Package

* Three Low-Impedance (30 mΩ Typical at 27°C) MOSFET Switches for Channel Selection

* Independent, 1

DLPA2005 General Description

DLPA2005 is a dedicated PMIC/RGB LED/Lamp driver for the DLP2010, DLP2010NIR and DLP3010 Digital Micromirror Devices (DMD) when used with a DLPC3430, DLPC3433, DLPC3435, DLCP3438, or DLPC150 digital controller. For reliable operation of these chipsets it is mandatory to use a DLPA2000 or DLPA2005. .

DLPA2005 Datasheet (1.48 MB)

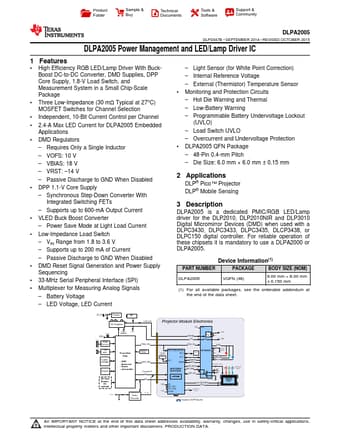

Preview of DLPA2005 PDF

Datasheet Details

Part number:

DLPA2005

Manufacturer:

Texas Instruments ↗

File Size:

1.48 MB

Description:

Power management and led/lamp driver.
Product Folder Sample & Buy Technical Documents Tools & Software Support & Community DLPA2005 DLPS047B

* SEPTEMBER 2014

* REVISED.
